ISOL-8's SubStation LC Specifications
  • square Number of available outlets:  4 Low/Medium Current outlets
  • square Hinged covers to protect unused outlets from dust dirt and little fingers
  • square Dimensions:  9.1" x 5.3" x 16.5" (W x H x D) excluding connectors
  • square Product Weight:  12.8 lbs
  • square Construction:  Non-magnetic, non-resonant Aluminum chassis and aluminum panels and available with Silver or Black finish
  • square Max Continous Current: Any One Outlet / All Outlets:  8A / 8A
ISOL-8 SubStation LC - Optimizing power for your source components

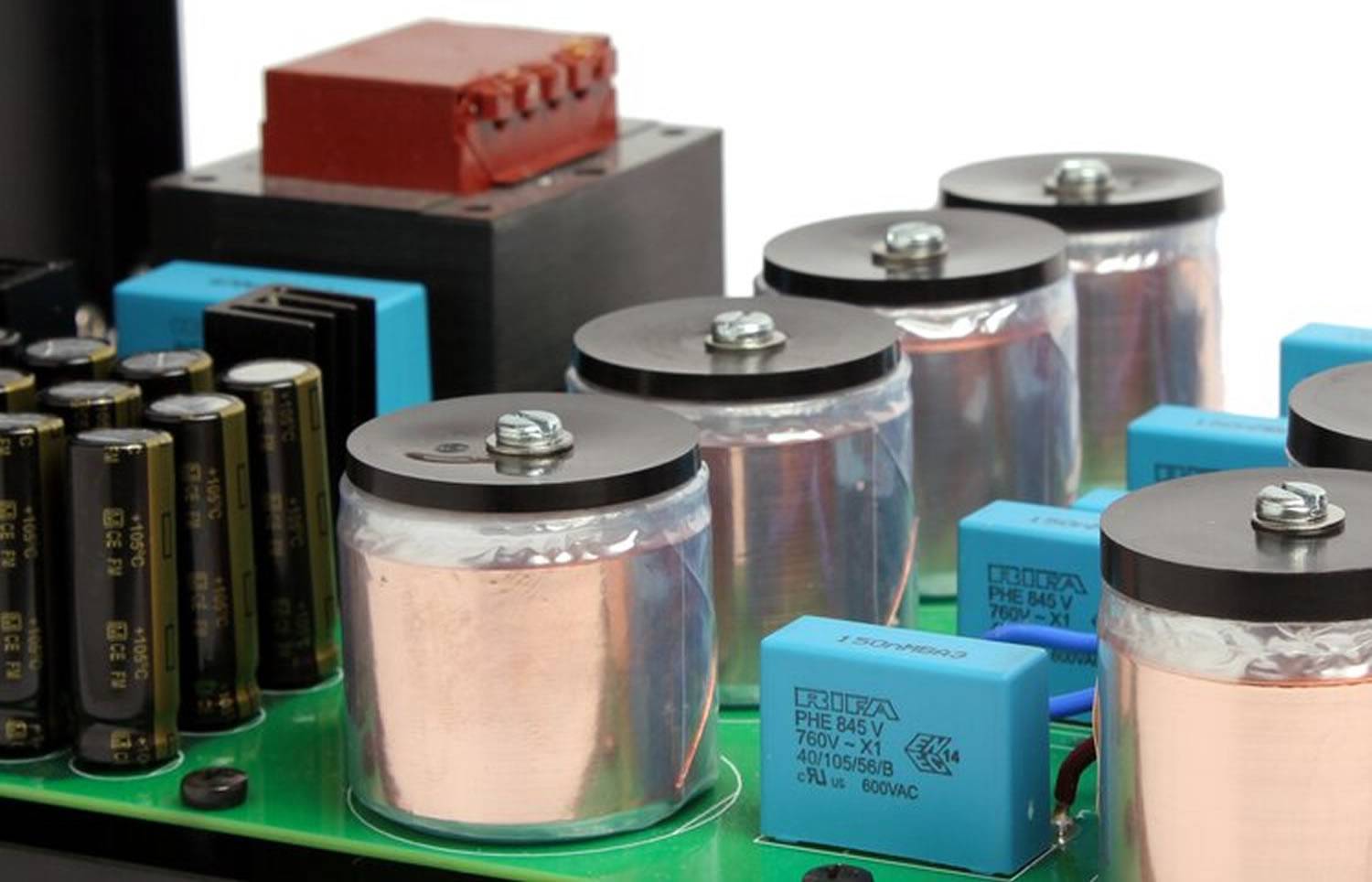

The SubStation LC (Low current) is the cornerstone of the range. Constructed with carefully selected premium components, including OFC copper foil inductors, the SubStation LC readily liberates performance lost to compromised mains power with 8 Amps continuously available across the four (4) outlets for system source components. It is the ultimate passive power conditioner for low to medium current loads.

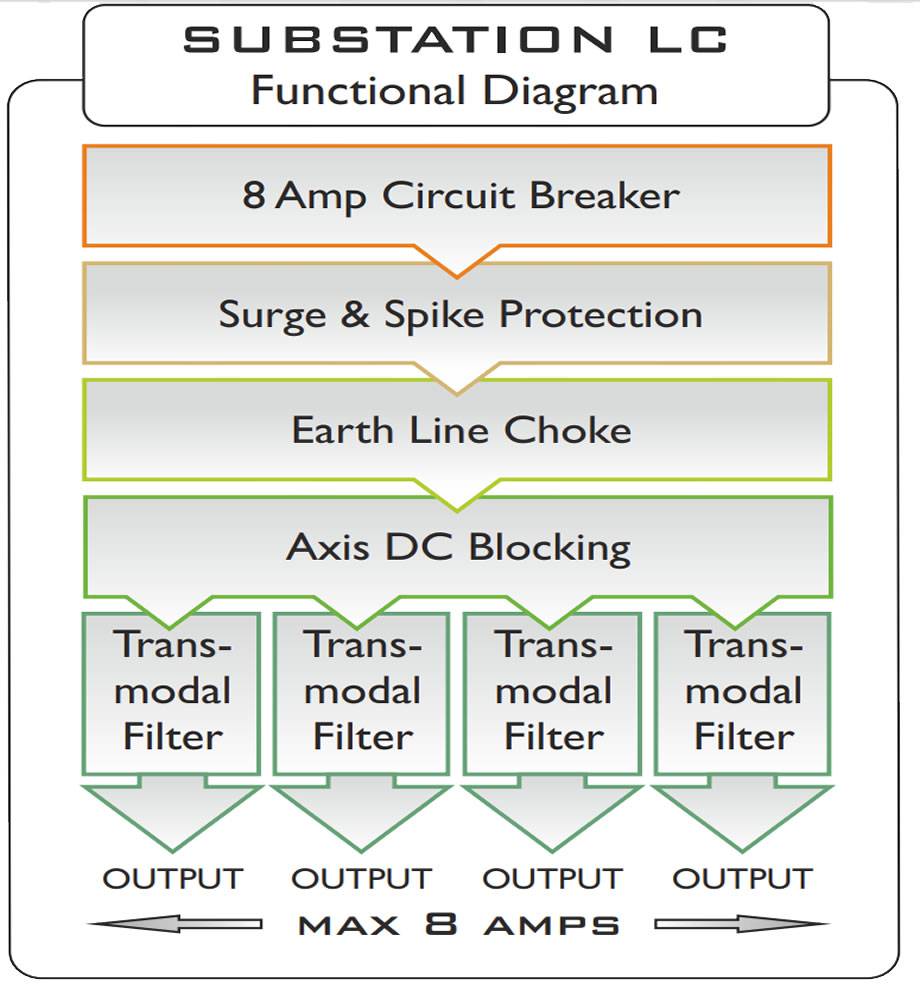

Key to the high level of performance of the ISOL-8 SubStations is conducting key power conditioning at each outlet, as power is served to components. The SubStation LC is equipped with ISOL-8’s Transmodal filter technology to prevent noise generated by individual components from contaminating the power going to other components in the system. The very low series resistance of the Transmodal topology means that high peak currents are passed effortlessly without dynamic compression, whilst still being effectively filtered. Having a Transmodal filter on each outlet provides greater isolation and is part of the reason for the enhanced performance of the ISOL-8 substations.

The performance of ISOL-8’s Substations is further enhanced by inclusion of the Axis circuit and a custom earthline choke. The high capacity ISOL-8 Axis circuit blocks any performance degrading DC present on the mains power supply. A custom wound choke filters any noise present on the safety earth wiring. All outputs are surge and spike protected. The outstanding build-quality of ISOL-8 products ensures the SubStation LC is constructed to last a lifetime.

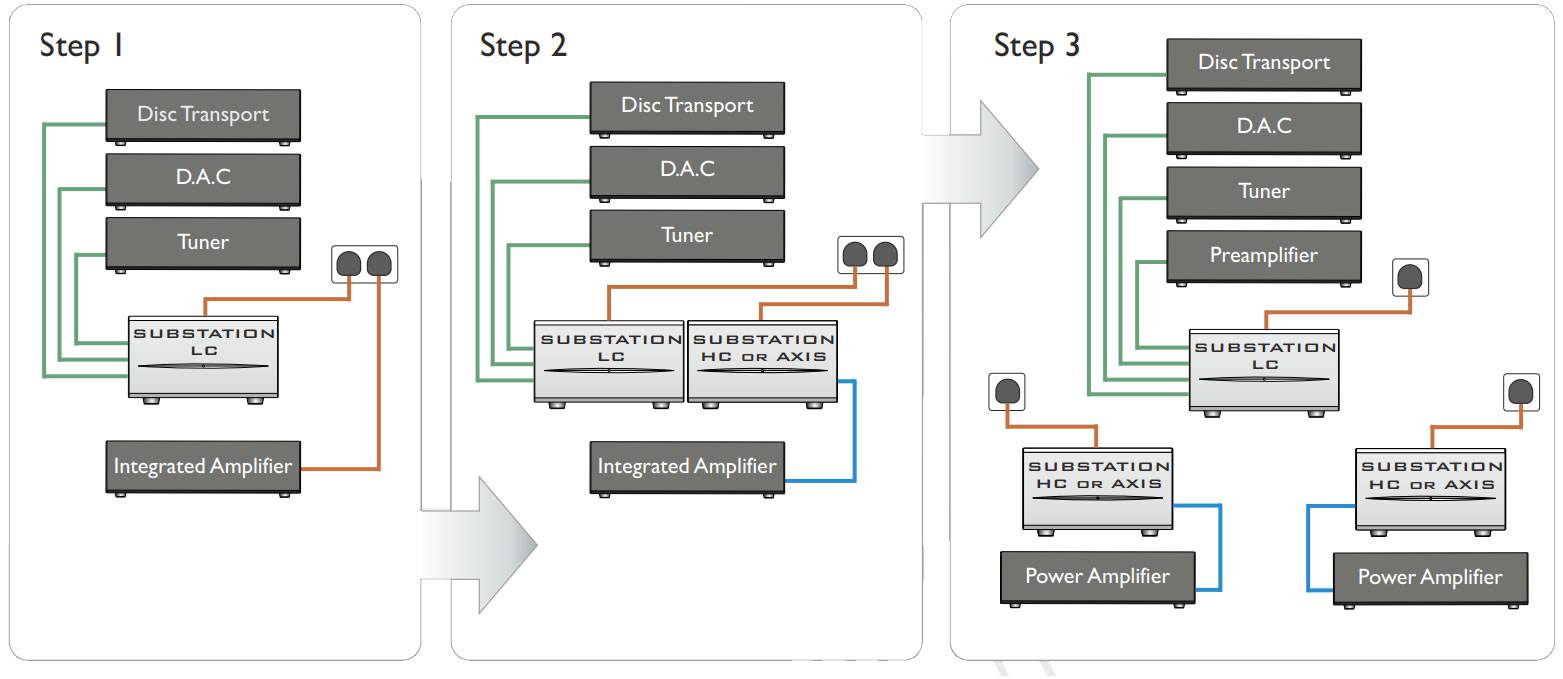

Additionally, the SubStation family has flexibility that as your system grows and evolves, you can adapt and improve your power supply in stages, avoiding costly dead ends. A typical upgrade path is shown here for illustration purposes only, many combinations and directions are possible. If you are in need of more than four outlets for your source componentss, the Substation LCX is an upgraded option for you to consider.

Product Reviews Available:
