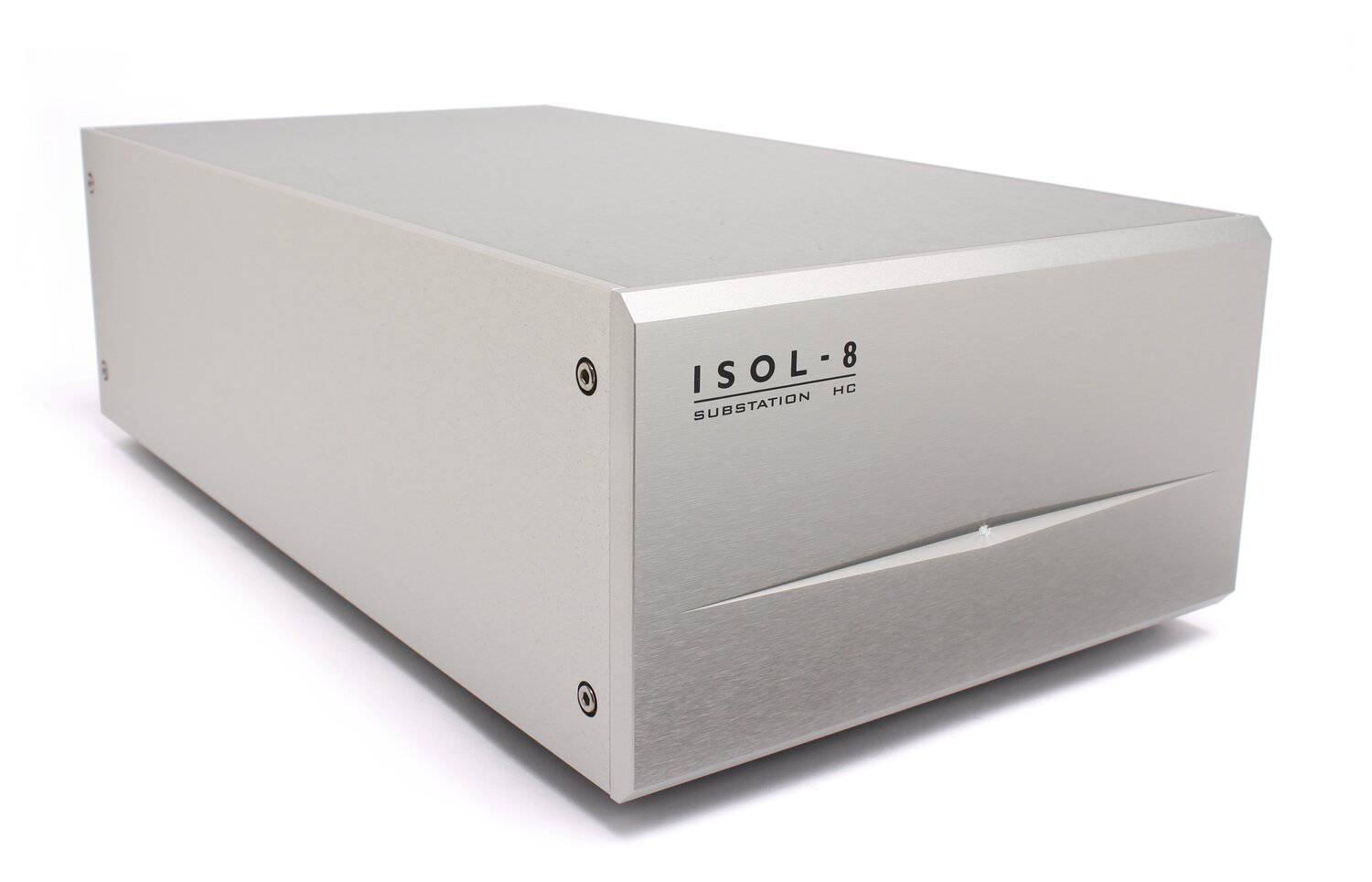

ISOL-8's SubStation HC Specifications
  • square Number of available outlets:  2 High Current outlets
  • square Hinged covers to protect unused outlets from dust dirt and little fingers
  • square Dimensions:  9.1" x 5.3" x 16.5" (W x H x D) excluding connectors
  • square Product Weight:  24 lbs
  • square Construction:  Non-magnetic, non-resonant aluminum chassis and aluminum panels and available with Silver or Black finish
  • square Max Continous Current: Any One Outlet / All Outlets:  16A / 16A

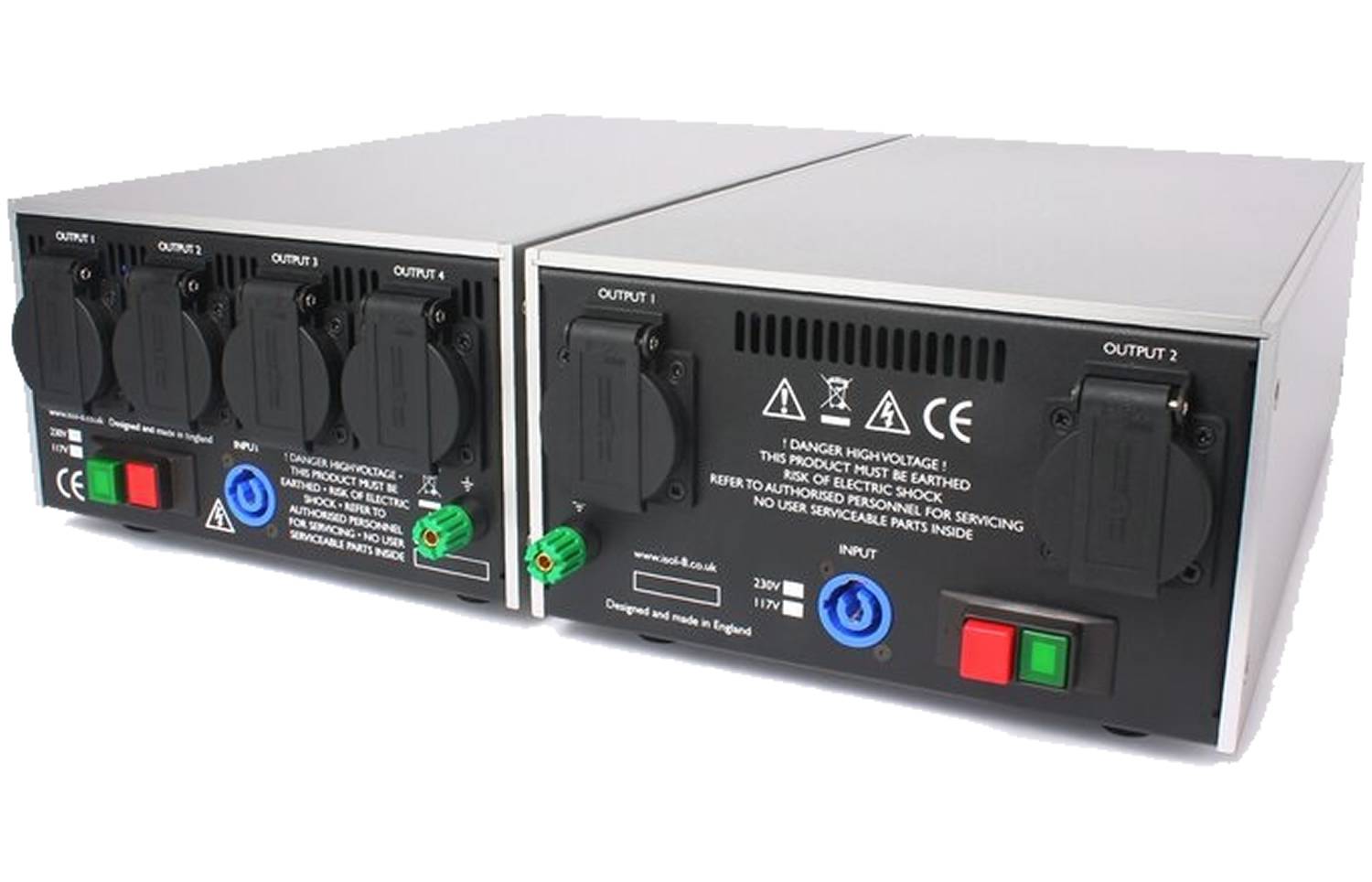

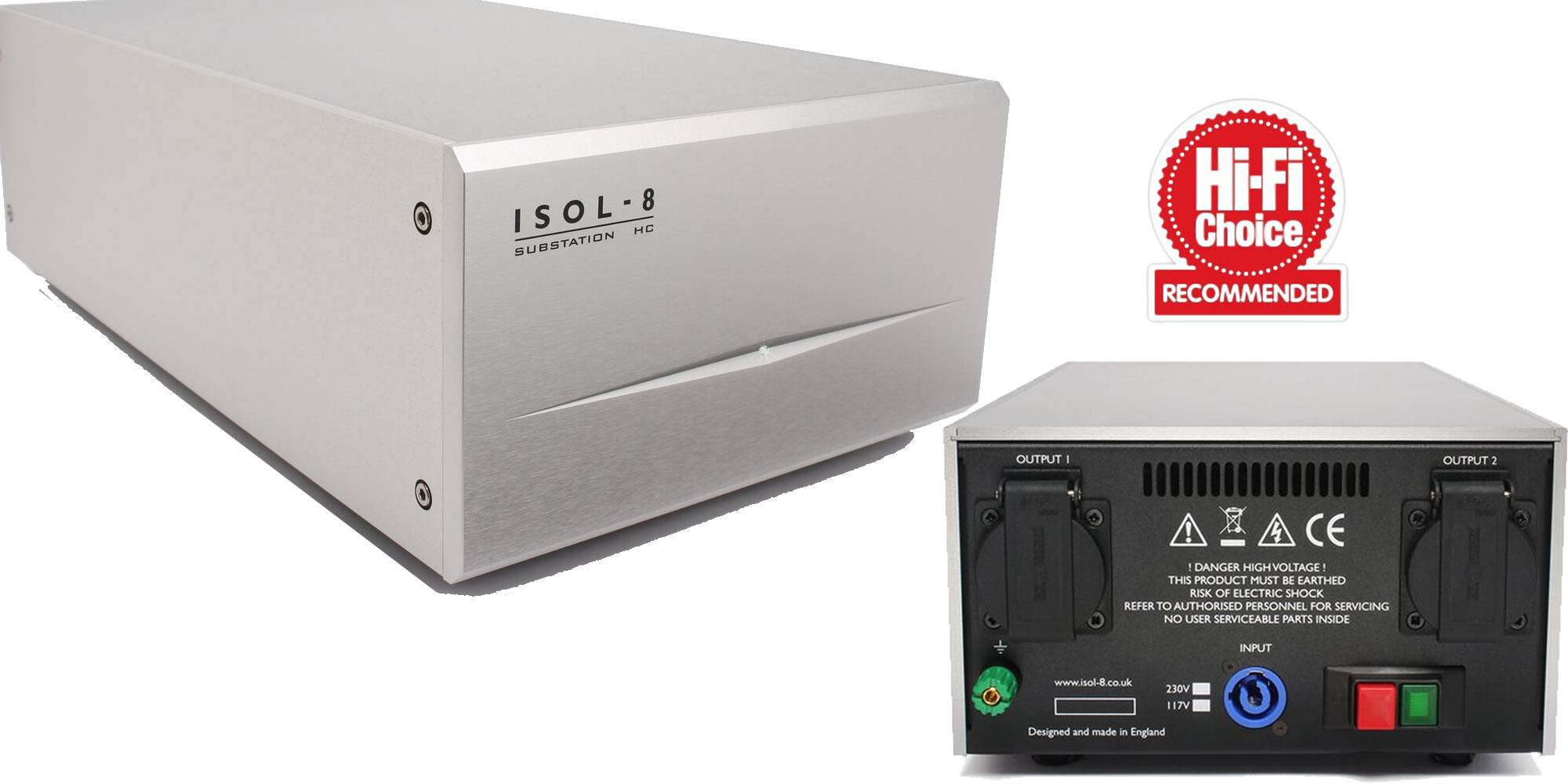

  • square Rear panel circuit breaker for additional protection
  • square Mains Inlet:  20A latching Neutrik powerCON (cable not supplied)
ISOL-8 SubStation HC - Effectively clean a high current power supply without compromising dynamic performance!

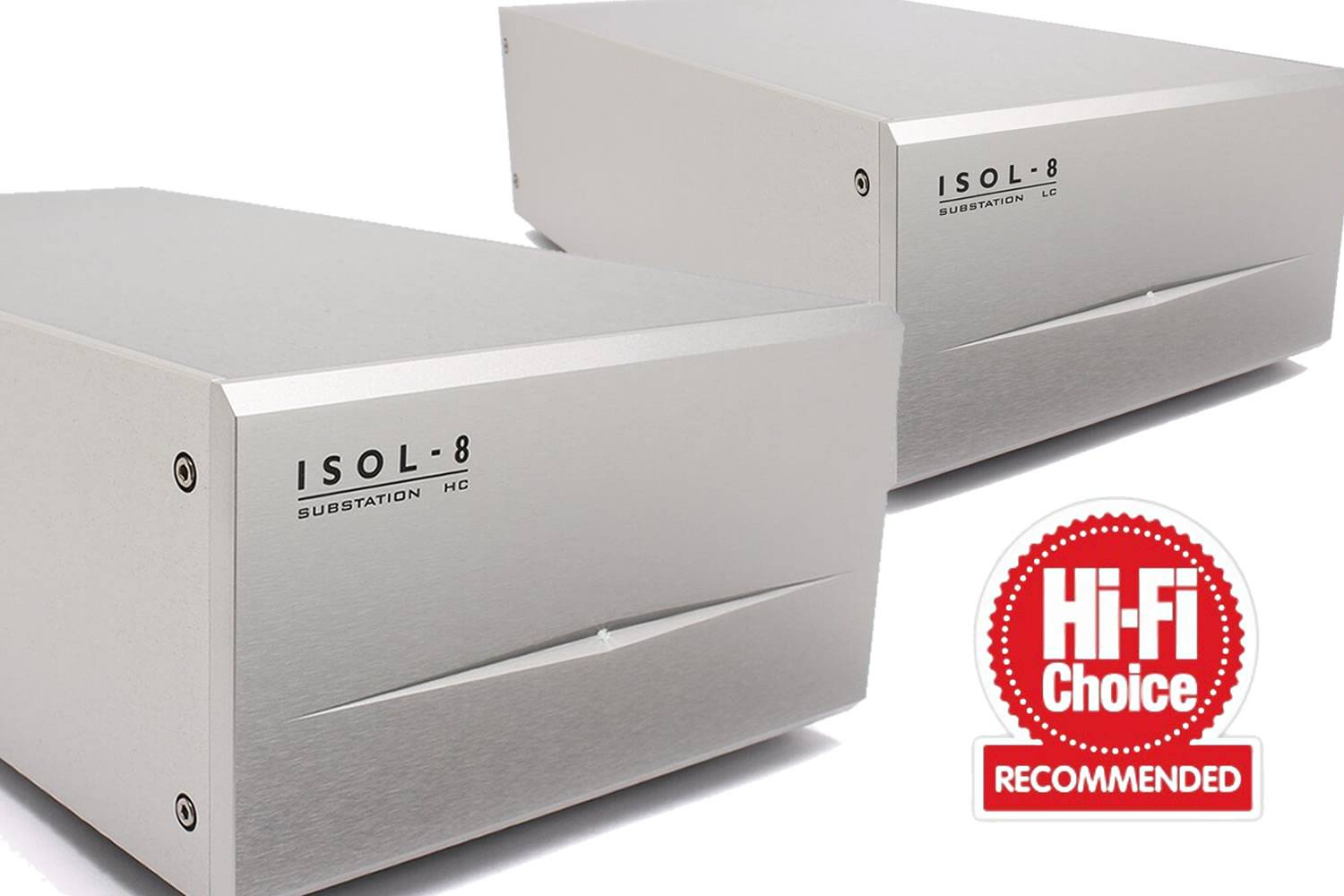

ISOL-8's SubStation HC (High current) is both a perfect compliment to the SubStation LC, and the perfect stand alone edition to any system, as the power needs and wants of your growing system evolve.

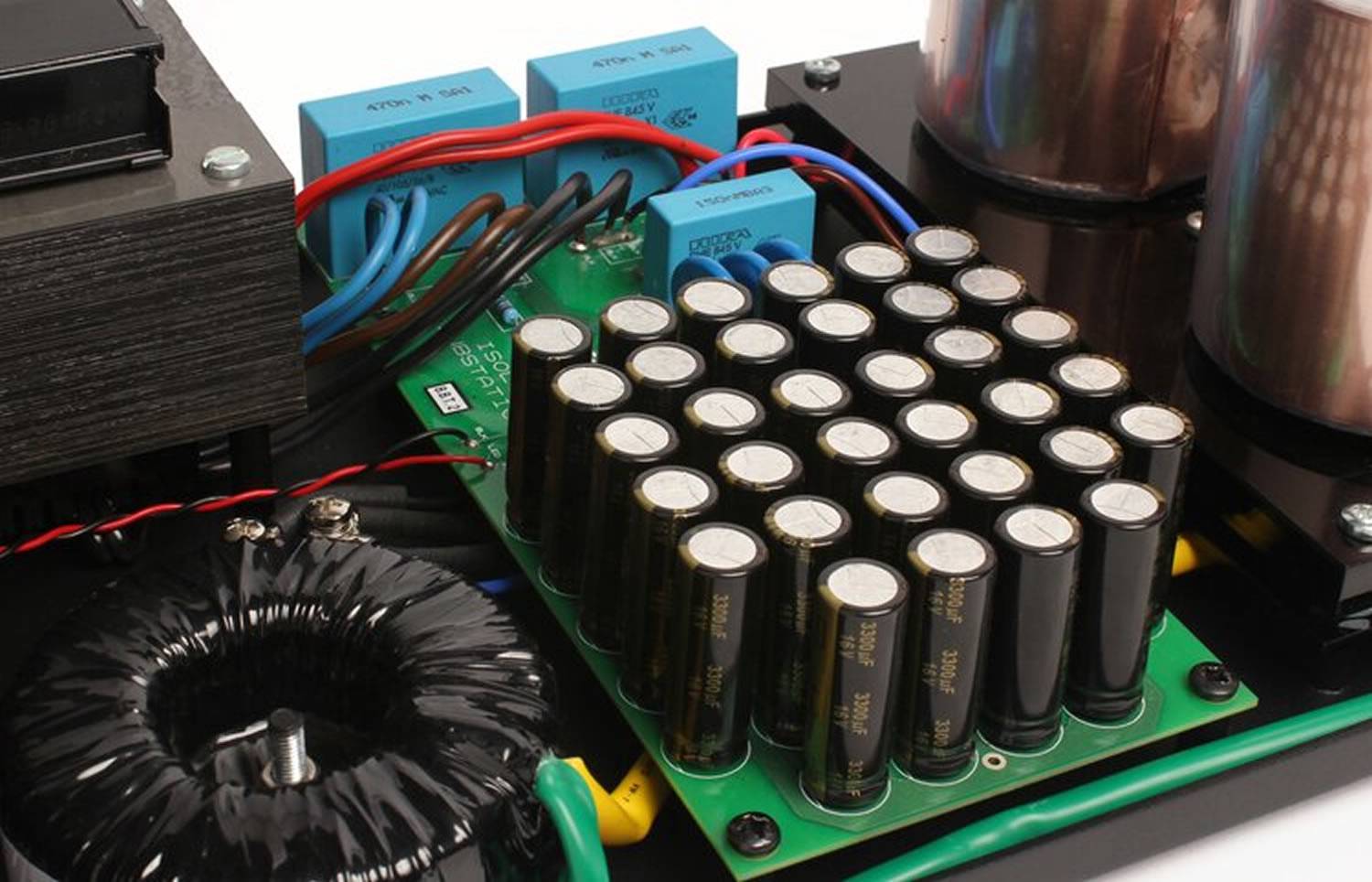

ISOL-8 has specifcally designed the SubStation HC to provide for high current loads while reducing noise by equipping each outlet on the device with its own, independent transmodoal filter and DC blcoking Axis circuit. Being capable of handling 16 Amps continuously across its two outlets, the Substation HC can surely deliver conditioned power to your components even during high peak current demanding moments.

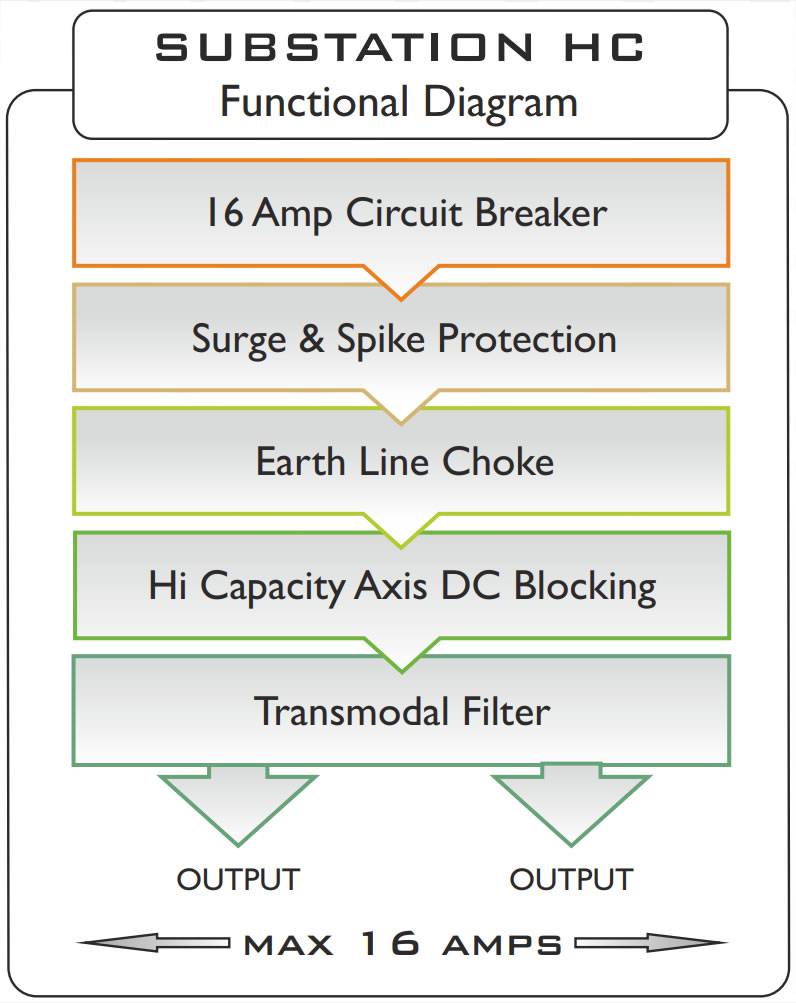

ISOL-8’s Transmodal filter technology used in both filter sections prevent noise generated by individual components from contaminating the power going to other components in the system. The very low series resistance Transmodal topology means that high peak currents are passed effortlessly without dynamic compression, whilst still being effectively filtered. Having a Transmodal filter on each outlet provides greater isolation and is part of the reason for the enhanced performance of the ISOL-8 substations.

The performance of ISOL-8’s Substations is further enhanced by inclusion of the Axis circuit and a custom choke. The high capacity ISOL-8 Axis circuit blocks any performance degrading DC present on the mains power supply. A custom wound choke filters any noise present on the safety earth wiring. All outputs are surge and spike protected.

Additionally, the SubStation family has the flexibility to always deliver the optimum power solution. As your system grows and evolves, so you can adapt and improve your power supply in stages, avoiding costly dead ends. A typical upgrade path is shown here for illustration purposes only, many combinations and directions are possible.
