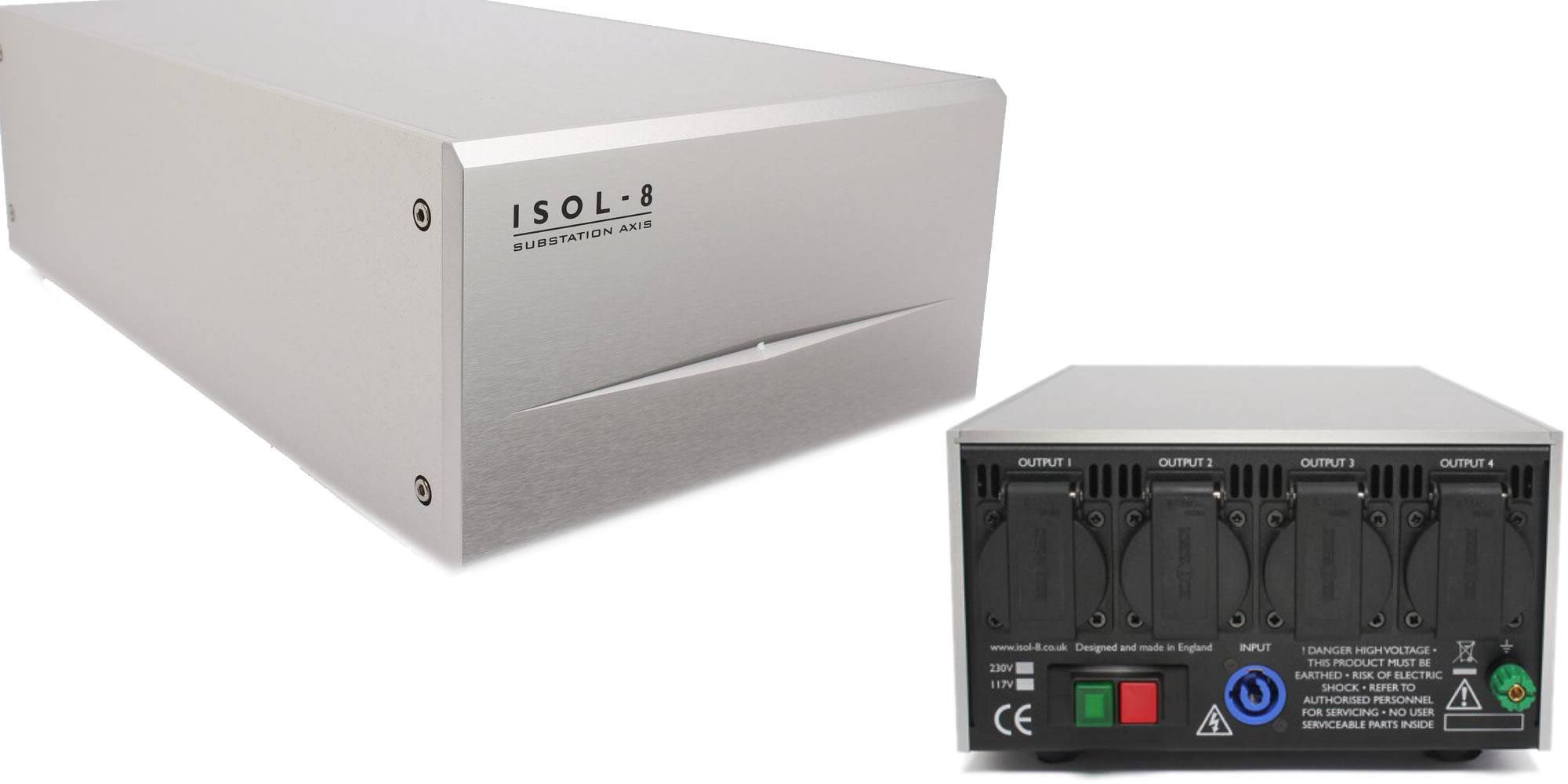

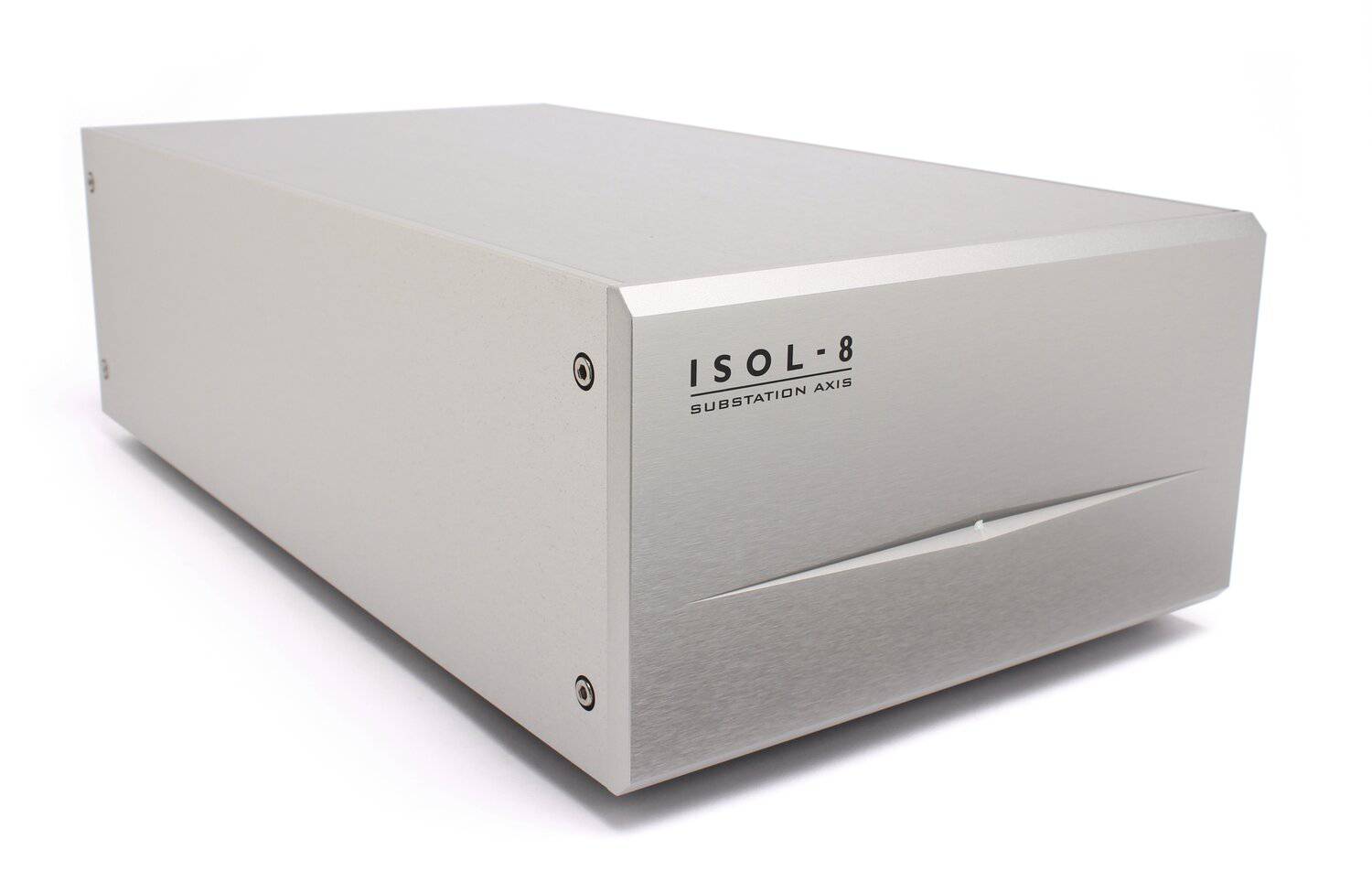

ISOL-8's SubStation Axis Specifications
  • square Number of available outlets:  4 High Current 15A sockets
  • square Hinged covers to protect unused outlets from dust dirt and little fingers
  • square Dimensions:  9.1" x 5.3" x 16.5" (W x H x D) excluding connectors
  • square Product Weight:  10.6 lbs

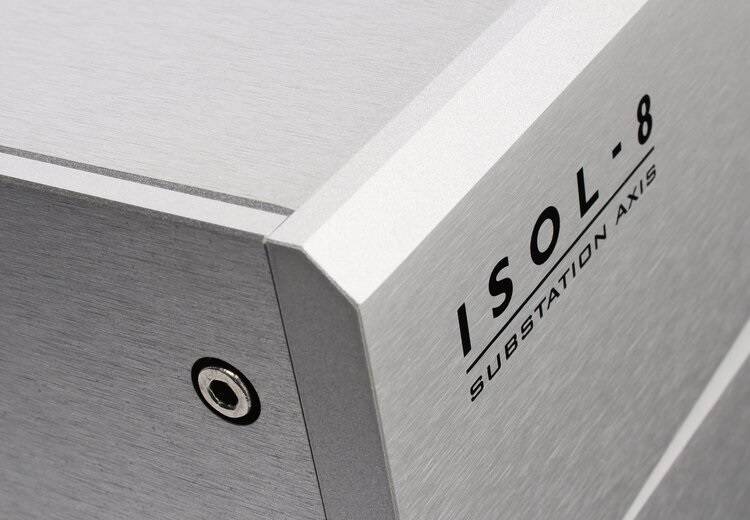

  • square Construction:  Non-magnetic, non-resonant aluminum chassis and aluminum panels and available with Silver or Black finish
  • square Max Continous Current: Any One Outlet / All Outlets:  16A|10A / 16A
  • square Rear panel circuit breaker for additional protection
  • square Mains Inlet:  20A latching Neutrik powerCON (cable not supplied)
ISOL-8 SubStation Axis - Dedicated High current DC blocking

The ISOL-8 SubStation Axis provides a more economical third option with the considerable benefits of DC blocking, but without multistage filtering. Where the mains waveform is not perfectly symmetrical in energy content, a DC component will be present. This partially saturates the power supply’s mains transformer and can lead to acoustic hum and reduced performance from connected equipment.

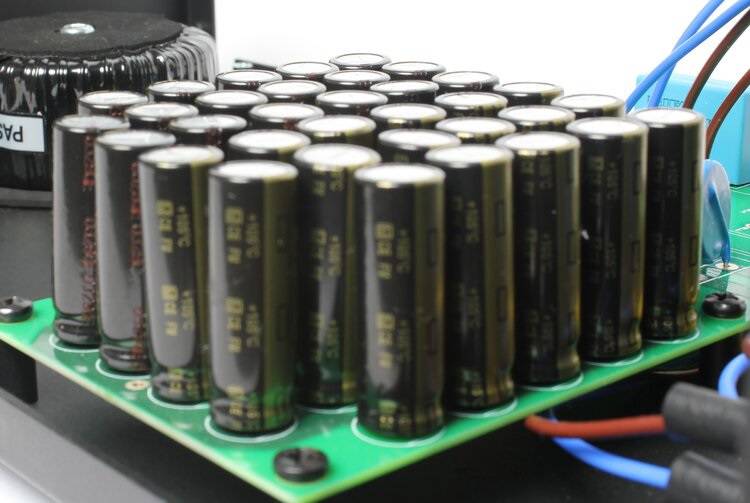

A high current version of the acclaimed ISOL-8 Axis circuit design sits at the heart of ISOL-8's SubStation Axis and blocks any DC that is presented on the incoming mains power supply. The unit's four outlets supply a continuous current capability of 16A across the unit and as with the other SubStations, utilize a higher-grade 20A latching Neutrik powerCON input connection. The SubStation Axis is eminently suitable for lifting the performance of all high end system components.

The SubStation Axis is capable of handing 16A of continuous current flow, making it suitable for power hungry monoblocks and subwoofers, as well as source components and other connections. And since their is no additional filtration taking place, its still suitable for the "purist" not interested in other power conditioning.

The outstanding build-quality of ISOL-8 products ensures the SubStation Axis is constructed to last a lifetime. Spike & Surge protection, a custom Earth Line Choke, and a 16 AMP Circuit Breaker, are included as standard.

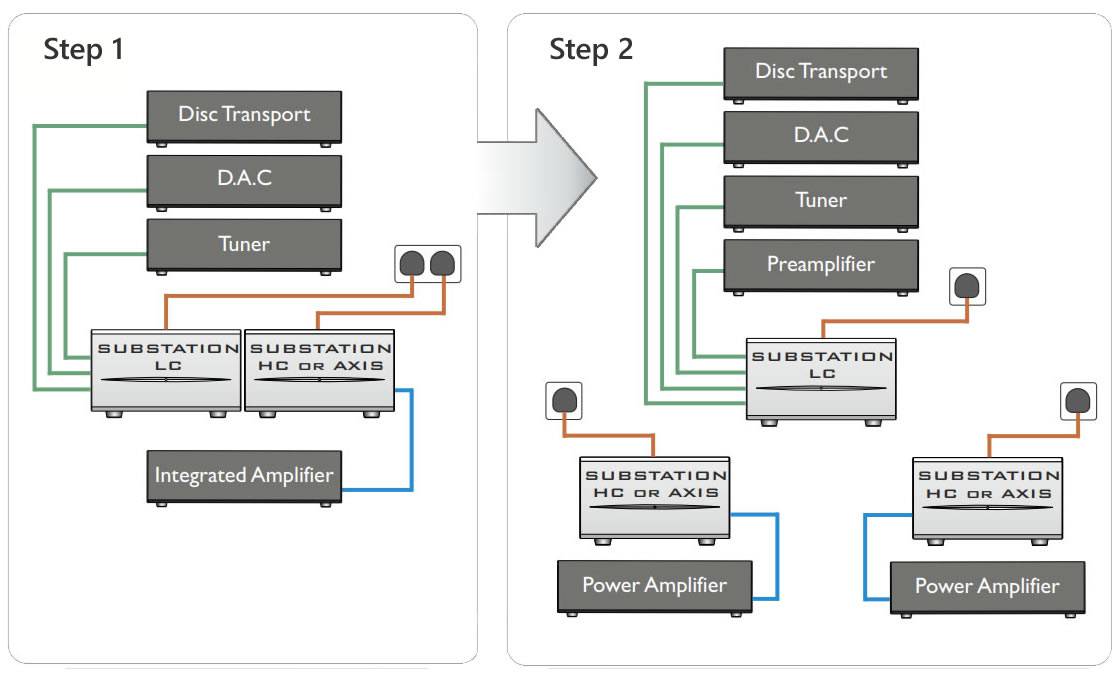

Additionally, the SubStation family has the flexibility to always deliver the optimum power solution. As your system grows and evolves, so you can adapt and improve your power supply in stages, avoiding costly dead ends. A typical upgrade path is shown here for illustration purposes only, many combinations and directions are possible.

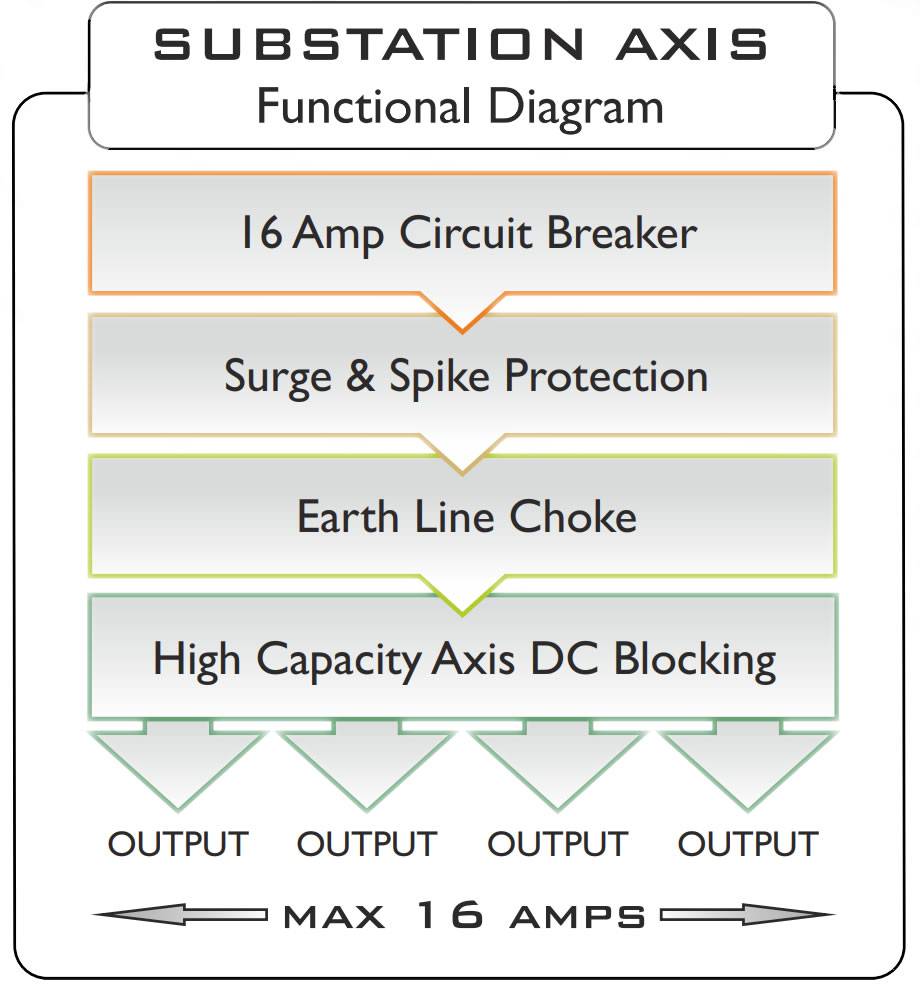

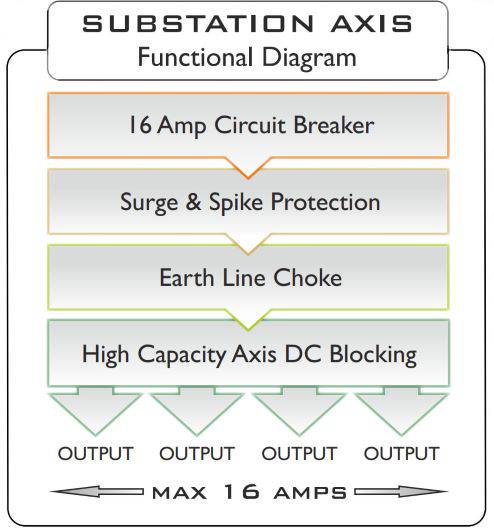

SubStation functions
